Description

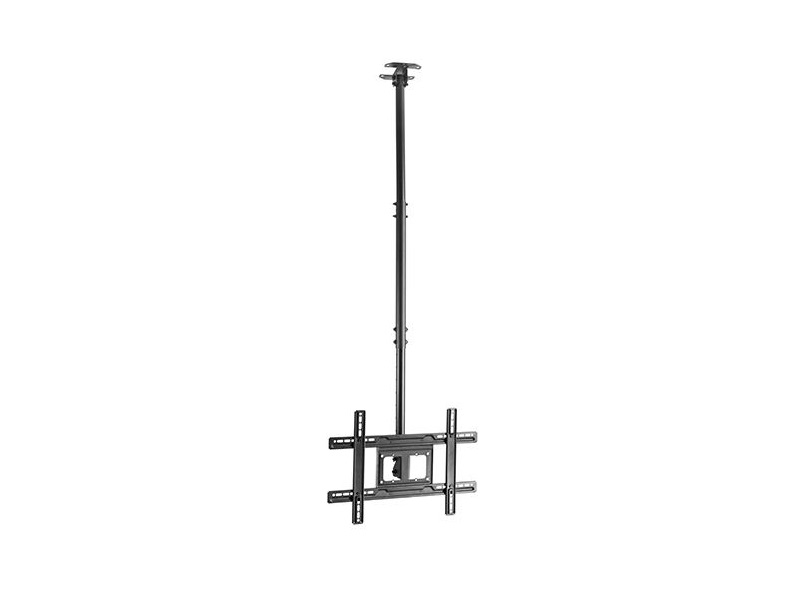

This heavy-duty TV mount offers the strong support for commercial mounting. Tilt ceiling plate contributes to the flexibility for applying in flat and pitched ceiling, special design also allows for single wood stud and roof beam installation. It is effortless to adjust the height by telescopic design of the pole. The VESA plate can swivel and tilt for the optimal viewing angle. Also, the inside cable management keeps an elegant appearance
-Telescoping Height Adjustment: for the optimal viewing height
-Free-tilting & Swiveling Design: for multiple TV viewing angles
-Cable Management: keeps everything organized
-Detachable VESA Plate Design: enables easy installation
-Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
Product Category:TV Ceiling Mount
Rank:Standard
Material:Steel,Plastic
Surface Finish: Powder Coating
Color:Fine Texture Black

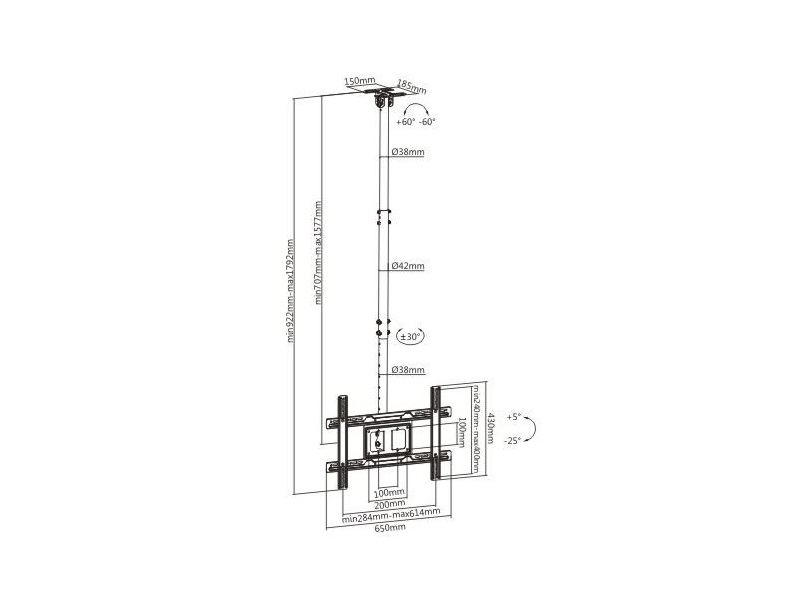

Dimensions:1792x650x185mm (70.6″x25.6″x7.3″)
Fit Screen Size:37″-80″
Fit Curved TV:No
Weight Capacity:50kg (110lbs)
Strength Tested:3 Times Approved
Mounting Hole Pattern: VESA & Universal
VESA Compatible:200×200, 300X200, 300X300, 400×200, 400X300, 400×400, 600×400
Max. VESA:614x400mm
Panel Type:Detachable Panel
Screen Freely Tilting:No
Tilt Range:+5°~-25°

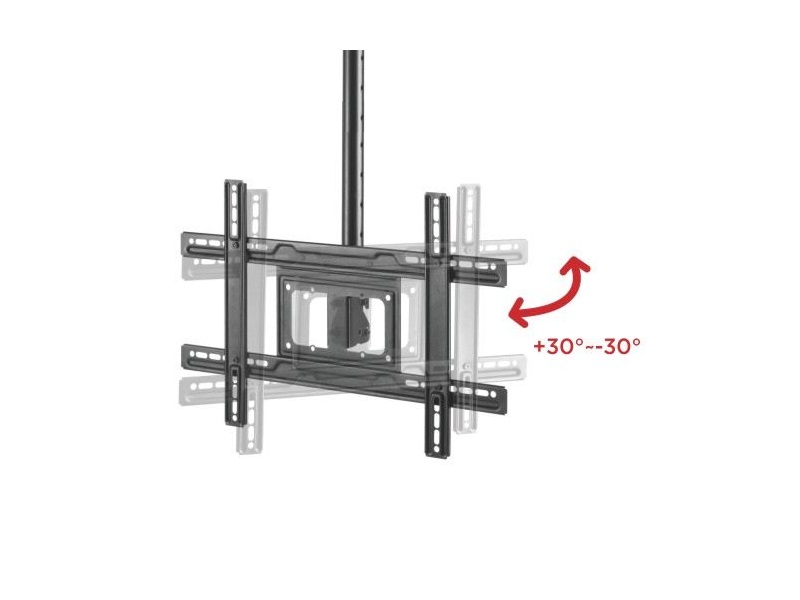

Swivel Range:+30°~-30°
Profile:707~1577mm (27.8″~62.1″)
Installation:Solid Wall,Single Stud,Ceiling Mounted
Wall Plate Type:Fixed Wall Plate
Freely Height Adjustable:No
AV Component Shelf:No
Direction Indicator:No
Cable Management:Yes
Anti-theft:No
Motorized:No
By Function:Tilting
Bubble Level:No
Instruction Manual Included:Yes
