Description

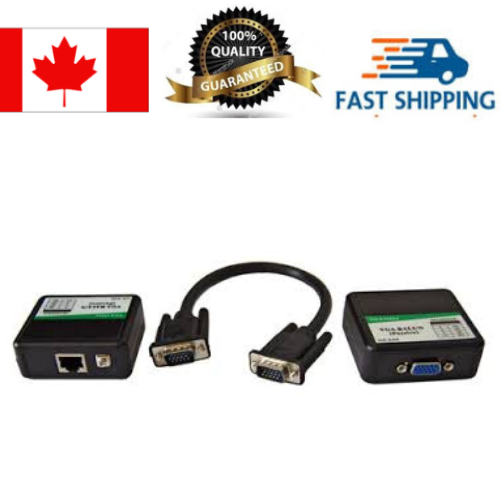

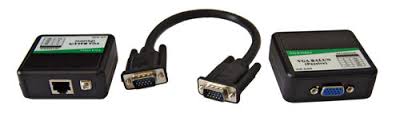

VGA Balun supporting PC Video over Cat5e/6.
Balun via an HD15(VGA) connector to RJ45 jack.
Features:
No need power supply
Eliminates Coax or other cabling
Supported PC resolutions: VGA, SVGA,XGA, SXGA and WXGA
Transmits VGA(640×480) Video up to 300ft over a single UTP Cat5e/6 cable.
Maximum Distance*:
VGA: (640 x 480) 600 ft
SVGA: (800 x 600) 400 ft
XGA: (1024 x768) 250 ft
WXGA: (1280 x768) 200 ft
SXGA: (1280 x1024) 200 ft
UXGA: (1600 x1200) 150 ft
WUXGA: (1920 x1200) 150 ft
(*Longer distances are possible but best quality is attained at shorter distances)
