Description

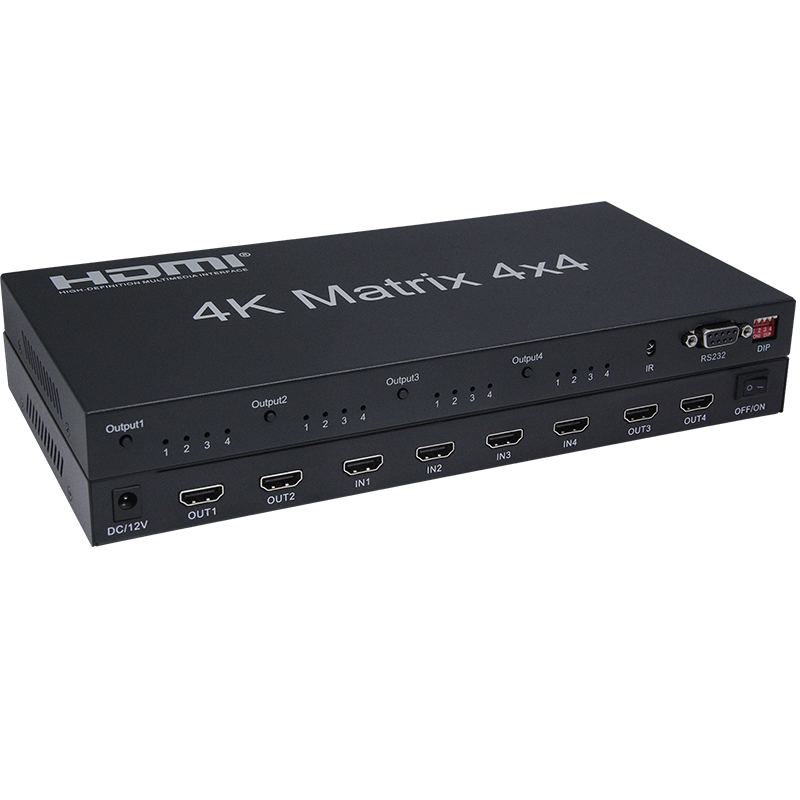

This 4×4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -20° ~ 60°C |
| Power | |
| Input Voltage | 100 V |
| Power Supply (Transmitter) | 12 Volt DC Converter |
| Connector(s) | |
| Input | 4 x HDMI Female |
| Output | 4 x HDMI Female, 4 x SPDIF |
| Performance | |
| Video | 480i/ 480p/ 576p / 576i / 720p/ 1080i/ 1080p@60Hz / 4K*2K@60Hz |
| Audio | Dolby True HD, DTS-HD Master Audio |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18 Gbps |
| HDCP Compliant | Yes, HDCP2.2/1.4 input, HDCP2.2/1.4 output |

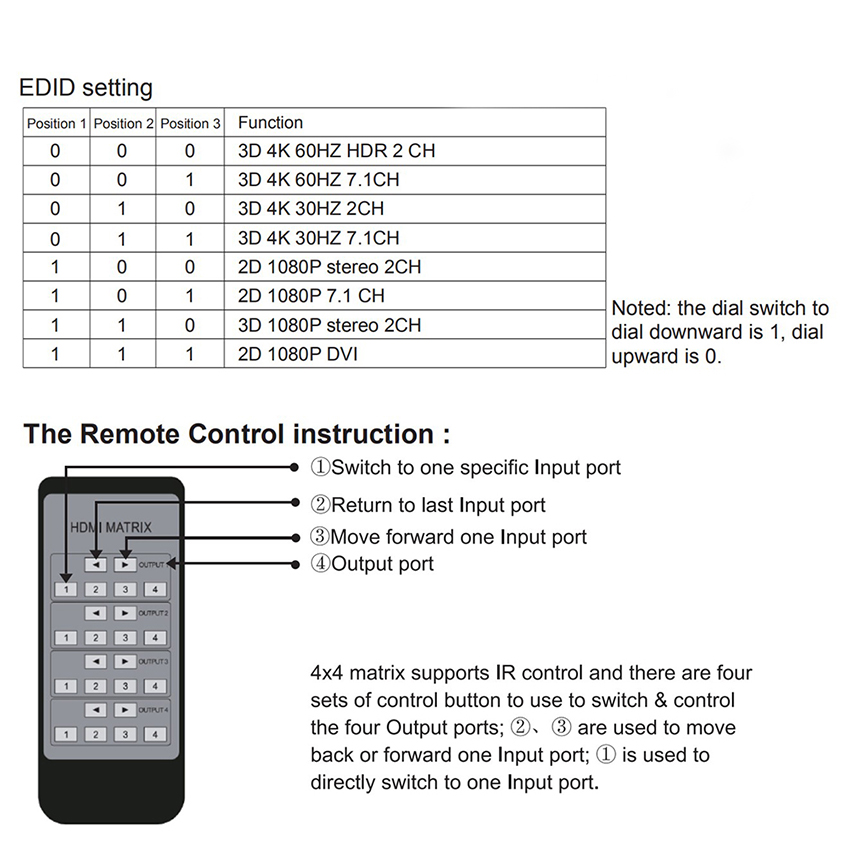

| IR Control | Yes, 38 kHz |
| 3D Compliant | Yes |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
