Description

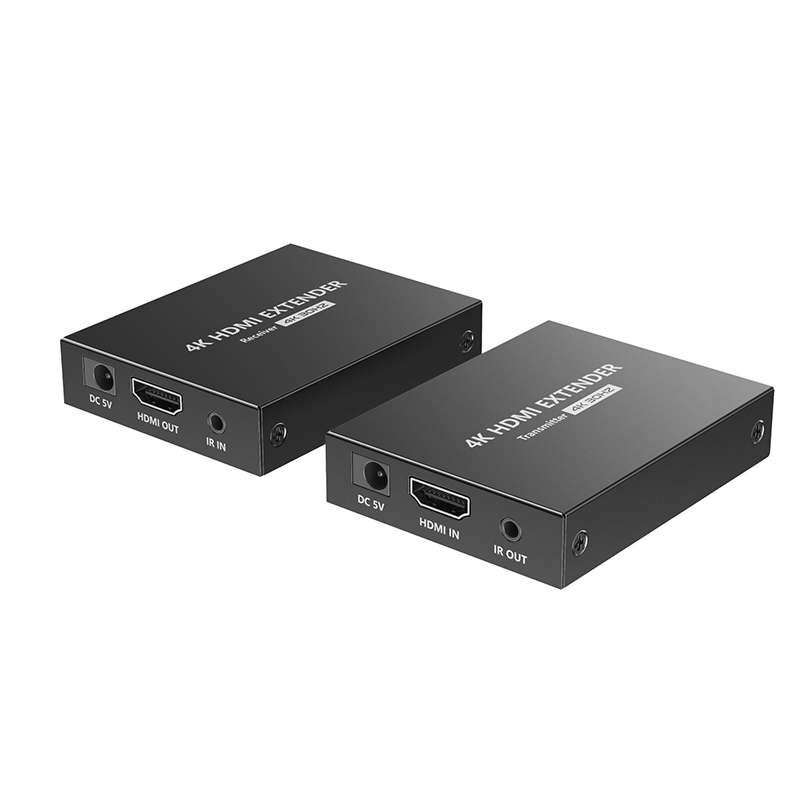

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable.

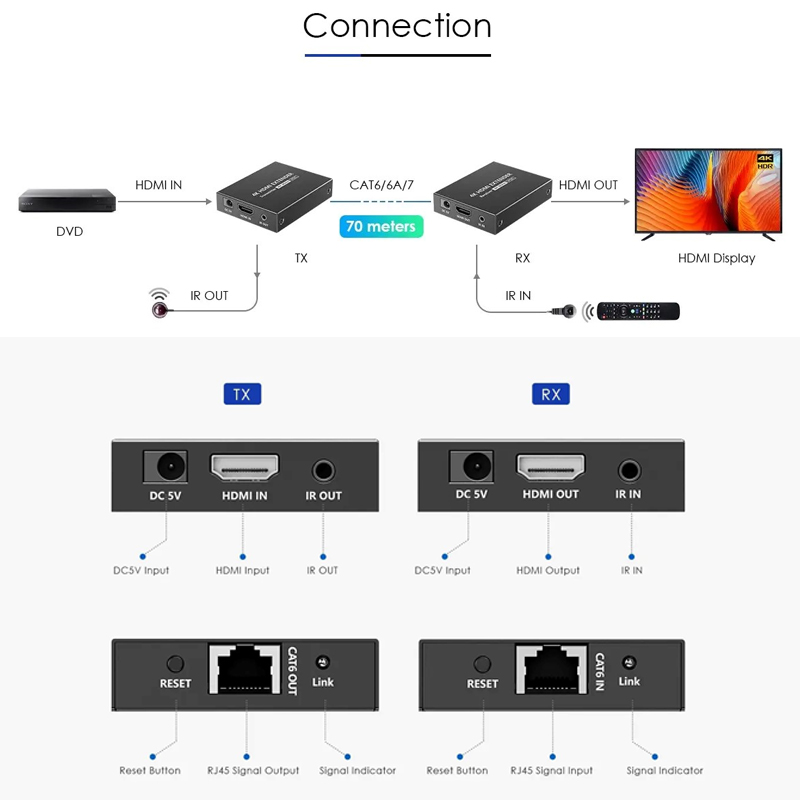

It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc
HDMI & IR Extender Kit Over Cat6/6A/7. 1080p up to 70m. Supports EDID & IR Passback. Support PoC network cable power supply, only TX power supply is needed (Not Suitable for Cat5/5e)
-Zero latency
-Support up to 4K@30Hz resolution
-Support CAT6/6A/7 network cables, 1080p@60Hz transmission distance is up to 70meters, 4K@30Hz transmission distance is up to 40 meters
-Support IR pass-back function (20KHz~60KHz)
-Support HDR10
-Support EDID passthrough
-Support PoC network cable power supply,
-Only TX power supply is needed
-Power Supply
-Voltage/Current:DC 5V/2A
-Power consumption:TX+RX
HDMI Performance and Interface
HDMI resolution:800×600, 1024×768, 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050,
1920×1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@24/25/30/50/60Hz, 3840×2160@24/25/30Hz
Audio formats:DTS, DTS-HD, PCM, LPCM
HDR:Support
EDID through:Support
IR Pass-back:Frequency Range: 20KHz~60KHz
Input and output TMDS signal:0.7~1.2Vp-p (TMDS)
Input and output DDC signal:5Vp-p (TTL)
Transmission Distance:Cat6/6A/7
1080p@60Hz transmission 70 metres
4K@30Hz transmission 40 metres 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)
Protection Level:Electrostatic protection of the whole machine Implementation of the standard: IEC61000-4-2
Operating Environment:
Working temperature:-20°C~60°C
Storage temperature:-30°C~70°C
Humidity (no condensation) 0%~90% RH
Body Properties
Dimension:75.0(L) x 60.0(W) x 16.5(H) mm
Weight: 127g
Warranty: 180 days
Package included:

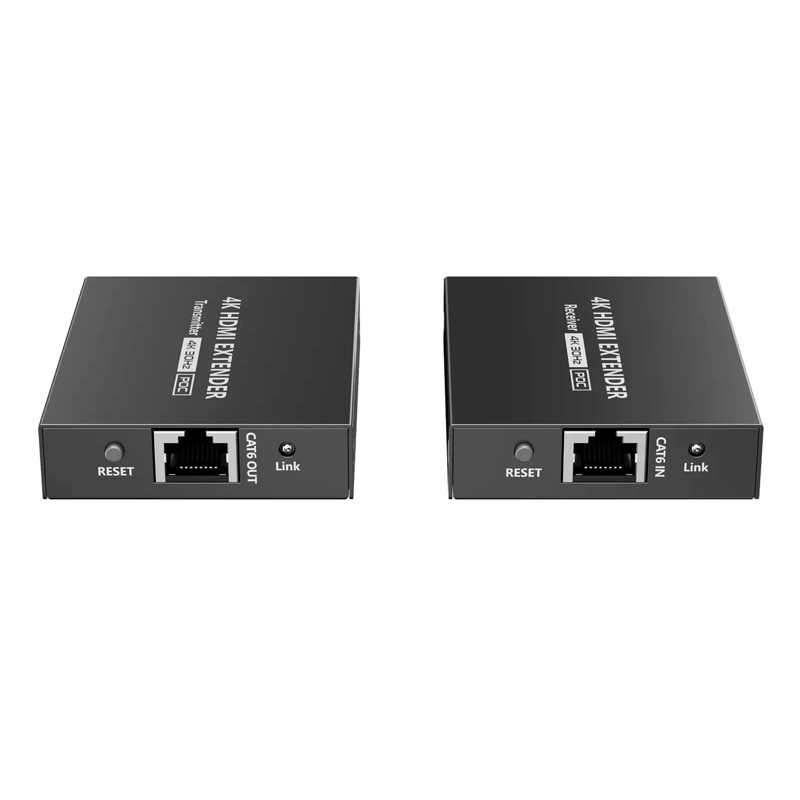

1x transmitter unit (TX)
1x receiver unit (RX)
1x IR blaster extension cable
1x IR receiver extension cable
1x DC5V/2A adapter
1x user manaul
