Description

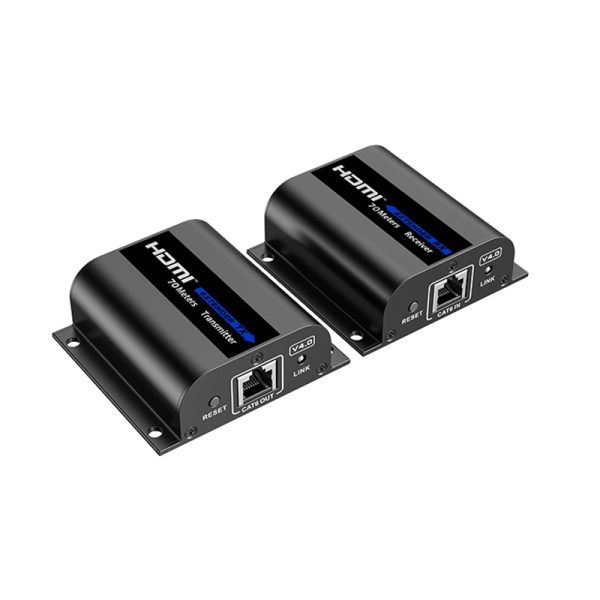

The Lenkeng LKV372AE-4.0 Extender is a twisted-pair HDMI transmitter and receiver kit that provides stable 1080p video transmission up to 70 meters.
The video signal is transmitted with zero latency and without compression.
The LKV372AE-4.0 kit supports IR signal return to control the image source (TV tuner, satellite receiver, player etc…
-Uncompressed signal and zero delay
-1080P@60Hz for 70m
-Support one way IR
-Strong static, surge,lightning protection
-One to one connection
-HDMI signal transmission over twisted pair CAT6/6a/7 (don’t support Cat5)
-Transmits HDMI signal up to 70 meters using CAT6 twisted pair cable
-Maximum supported video resolution – up to 1080p @ 60 Hz
-IR feedback support for remote control of image source
-“Ears” on the body for easy mounting to surfaces
-Zero video latency
-Lightning protection, surge protection, ESD protection
-Ideal for home use, conference rooms, broadcasts, exhibitions, video surveillance, and more.
-HDMI interface
-Video signal standard: HDMI 1.3, HDCP 1.4
-HDR:Supported
-EDID through:Supported
-Audio formats:DTS, DTS-HD, PCM, LPCM
-Resolution: 800×600, 1024×768, 1280×720,1280×960,1366×768,1440×900,1680×1050,1920×1080 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
-IR interface:IR control
-IR passback with a frequency of 20-60 kHz
-Transmission distance Range:cat6: 15–70 m,cat6a: 15–70 m,cat7: 15–70 m
-Environment parameters: Working temperature: 0..60 ° C
-dimensions:(W × D × H)mm: Transmitter: 71.60 × 66.60 × 24.80, Receiver: 71.60 x 66.60 x 24.80
-Colour:Black
-weight: Transmitter: 85g, Receiver: 85g
Package includes:
1x HDMI transmitter
1x HDMI receiver
2x Power supply 5V/1A
1x IR emitter
1x IR receiver
1x Instruction
