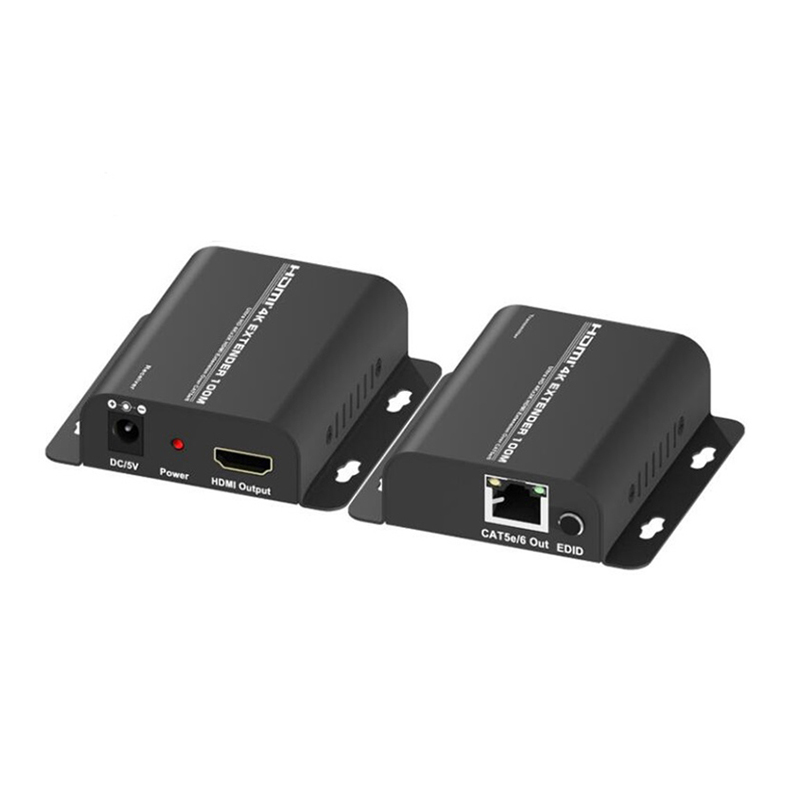

4Kx2K HDMI Extender over Single Cat5e/6 up to 100m Extender kit, HDMI-CAT5E/6-100M

$85.00

Category:

Description

The 4K 100M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 100 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

-Signal transmission :cat5e or cat-6(recommended) cables up to 100 meters instead of HDMI cables are connected between TX and RX Extender;

-Support HDMI1.4v;

-Support input/Output Resolution:4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

-Support CEC;

-Audio format support:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

-No loss of quality;

-Installs in minutes;

Length of CAT-6 cable between Transmitter and Receiver:Up to100 meters

HDMI Input/Output:4Kx2K/1080p/1080i/720p/576p/576i/480p/480i

Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth:340MHz

Max baud rate:10.2Gbps

Input Video signal:0.5~1.5Volts p-p

Output DDC signal:5Volts p-p (TT1L)

Input/Output HDMI cable distance:≤15m AWG26 HDMI standard cable

Max working current:800mA

Power adapter format

Input:AC (50HZ, 60HZ) 100V-240V;

Output: DC5V/1A

Operating Temperature range:(-15 to +55℃)

Operating Humidity range:5 to 90%RH (No Condensation)

Dimension(L x W x H):82×43.5×23.5mm



Packaging Accessories:

1x HDMI Transmitter

1x HDMI Receiver

2x Power supply (CuL)

1x User manual
