Description

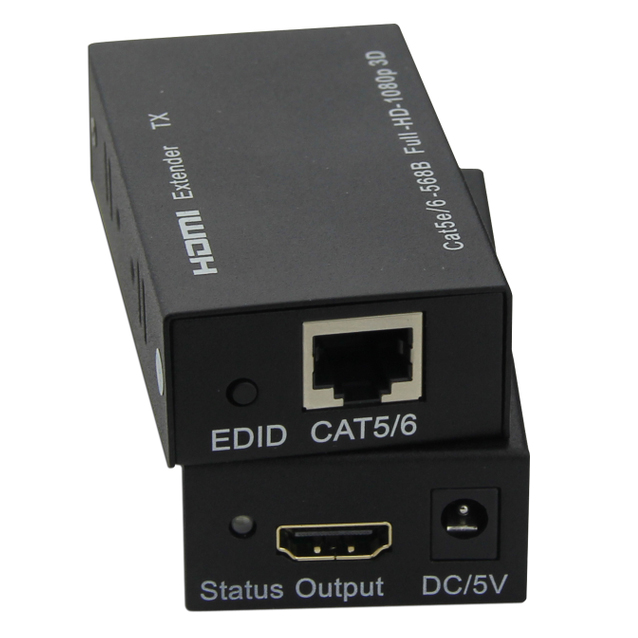

The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 30 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l Support HDMI 1.4a
l Support 3D
l Support highest video resolution 1080p/60Hz
l Support 1.65Gbps data rate and tmds clock up to 165MHz
l Support 8/10/12 bit deep color
l Support AWG26 HDMI standard cable, input up to 15 metres, output up to 5 metres
l Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 30 meters between TX and RX.
l No loss of quality
l Install in minutes
l Need DC5V/1A power supply
Operating and Connecting：
1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 15 meters
2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 5 meters
3. Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 30 meters
4. Connect 5V power supply to the TX and RX.
5. LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: power LED
SPECIFICATIONS:
Length of CAT-6/CAT-5E cable between Rx and TX……………………….…..Up to 30 meters
HDMI Input…..……………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input..…………………………….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output…..…………….……………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output………. ……………….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………165MHz
Max baud rate……………….…….………………….………….………………………1.65Gbps
Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance………….………………………..≤15m AWG26 HDMI standard cable
Output HDMI cable distance…………………………………….. ≤5m AWG26 HDMI standard cable
TX Max working current…………………………………………………….…………………510mA
RX Max working current………………………………………………………………………50mA
Power adapter format…………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………………………81x43x22 (mm)
TX Weight…..……………………………………………..……………………………..………100g
RX Weight…………………………………………………………………………………………………………100g
The Package includes:
1. TX Extender :1pc RX Extender:1 pc
2. 5V DC Power adapter
3. User Manual
