Description

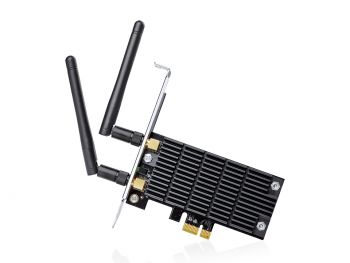

AC1300 Wireless Dual Band PCI Express
– Easy Installation – Upgrade your desktop system easily by plugging the Archer T6E Wi-Fi adapter into an available PCI-E slot
– Hi-Speed Wi-Fi – Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz band)
– 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
– Backward Compatibility – With support for 802.11 a/b/g/n standards
– Broad Wireless Range – 2 external antennas ensure a greater range of Wi-Fi connection and stability
-Includes a low profile bracket
| HARDWARE FEATURES | |
| Interfaces | PCI Express |
| Dimensions (W X D X H) | 4.8 x 4.5 x 0.85 in. (120.8 x 115.2 x 21.5 mm) |
| Antenna Type | 2 Dual Band Detachable Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz or 5GHz |
| Signal Rate | 867Mbps at 5GHz, 400Mbps at 2.4GHz |
| Reception Sensitivity | 5GHz : 11a: -68dBm 11n HT20: -64dBm 11n HT40: -61dBm 11ac HT20: -59dBm 11ac HT40: -54dBm 11ac HT80: -51dBm 2.4GHz : 11b: -76dBm 11g: -68dBm 11n HT20: -64dBm 11n HT40: -61dBm |
| Transmit Power | 5GHz : <23dBm (EIRP), 2.4GHz : <20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
